Metal Seated Gate Valve (MFGV)

The Duvalco Metal Seated Gate Valve (MFGV) is designed for demanding applications requiring robust, reliable shut-off with superior wear resistance. Featuring a metal-to-metal seating, this valve is ideal for pipelines exposed to high pressure, temperature, and abrasive conditions.

Standards
Manufactured to BS 5163
Seat type
Metal-to-metal seating for excellent durability and tight sealing under harsh conditions
Face-to-face dimensions
EN 558 Table 2, Series 3
Flange connection
EN 1092-2, PN10/PN16
Working pressure
Up to 16 bar
Working temperature
0°C to 80°C
Size range
DN50 to DN1000
Body material
High-quality ductile iron or carbon steel for strength and corrosion resistance
Coating
Fusion-bonded epoxy with WRAS approval for potable water applications
Materials
All components in contact with water comply with BS 6920
Testing
Hydraulic and performance tested to EN 12266-1
Data Sheet Assembly Drawings

Additional information

Variant

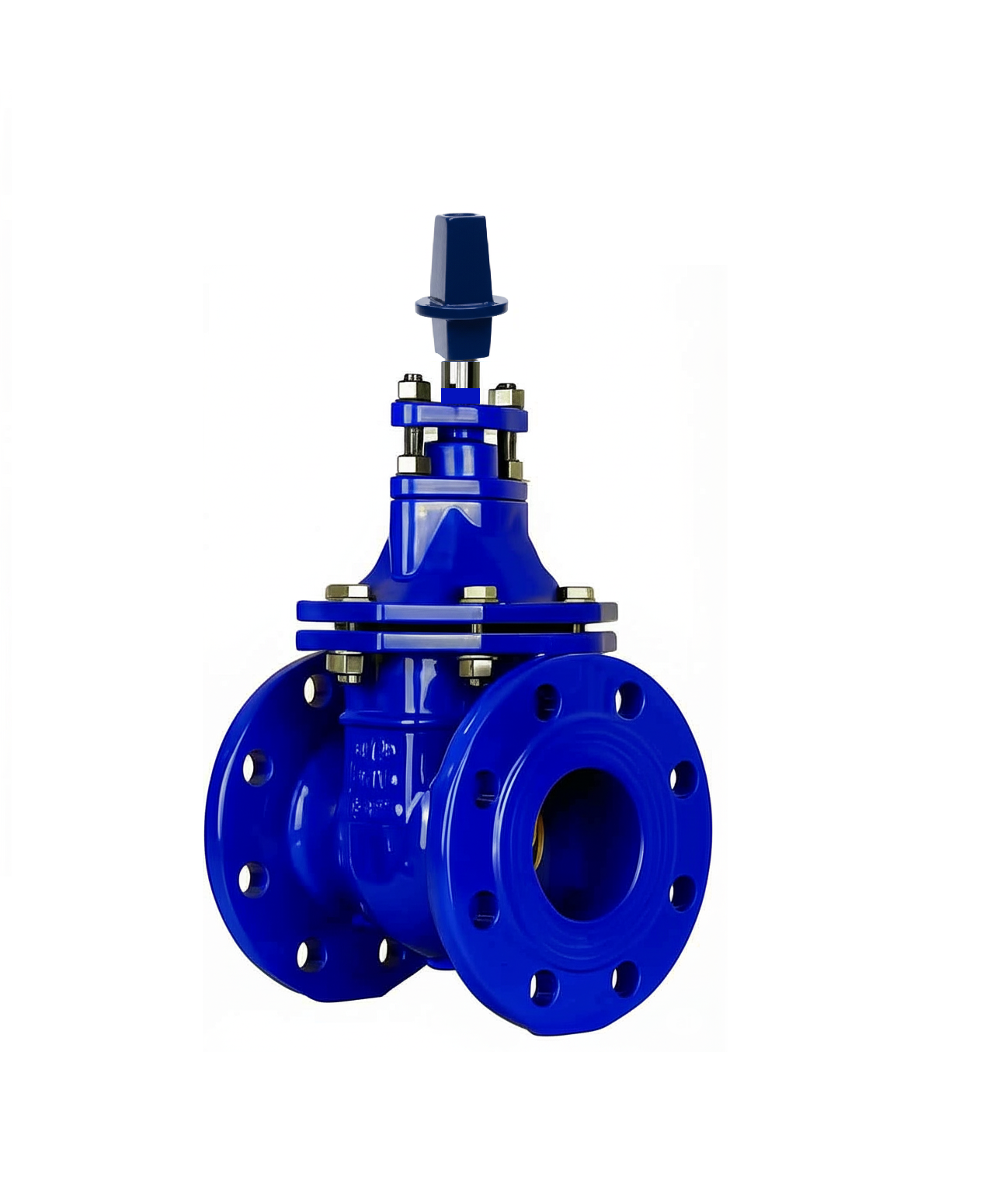

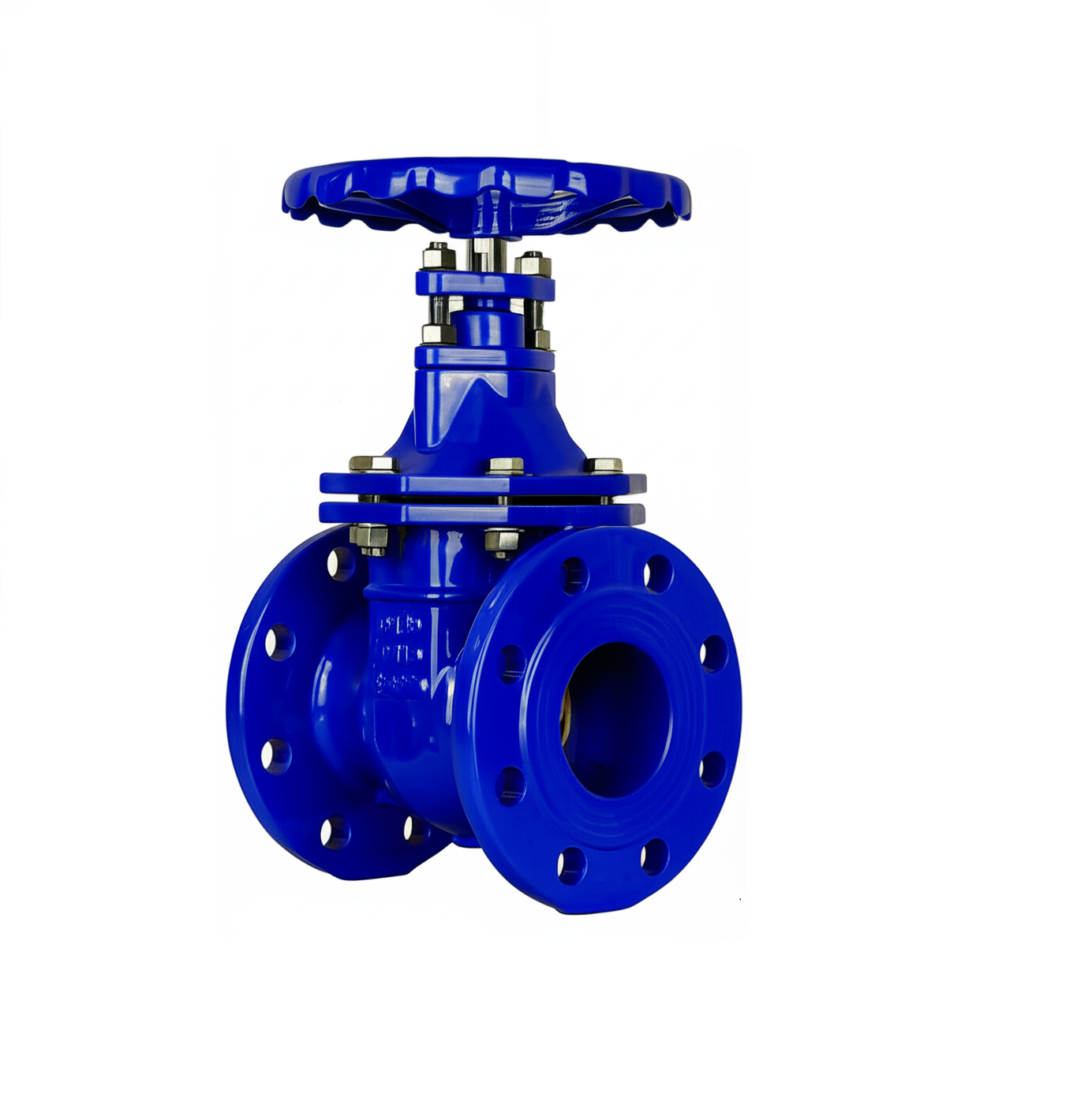

Bevel or spur gearbox options for ease of operation, By-pass valve available for DN350 and above, operable manually or via gearbox, ISO Top Flange per ISO 5210 for actuator mounting, Manual operation by handwheel or captop
